A cost-effectiveness analysis model of Preventicus atrial fibrillation screening from the point of view of statutory health insurance in Germany



With atrial fibrillation (AF) the risk of stroke is 4.2-fold increased to a comparable population without AF. This risk decreases by up to 70% if AF is detected early enough and effective stroke preventive measures are taken as recommended by international guidelines. Long-term studies found large number of subjects with undiagnosed AF. Preventicus Heartbeats” is a hands-on screening tool for use on smartphone to diagnose AF with high sensitivity and specificity. The aim of this study is to research the cost-effectiveness of systematic screening for AF with this smartphone application.


Employing a Markov model we analysed the cost-effectiveness of the “Preventicus Heartbeats” screening for Germany, i.e. from the perspective of German statutory sick funds.


For a cohort of 10,000 insured 75-year-old the use of the diagnostic app could avoid 60 strokes in the remaining lifetime thereof 32 strokes in the next four years. Former models have applied similar cohorts. The same cohort showed an increase in quality-adjusted life years (QALY) in the remaining lifetime of 165 QALYs in the scenario with screening versus.

without screening and a decrease in discounted lifetime costs (including risk compensation effects) of €129 per participant (€148 for male, €114 for female participants).


The modelling demonstrates the health benefits and economic effects of an implementation of a systematic screening on AF with “Preventicus Heartbeats”, given the perspective of the German payer, the statutory health care system.


Annual costs of acute and follow-up treatment of strokes were € 6.5 billion in 2015 in the German health care system. Thereof ischemic strokes alone accounted for € 5.1 billion [1]. One hundred six thousand persons a year insured in German statutory sick funds suffer a first-time stroke and 66,000 insured persons a recurrent stroke [2]. Based on the Erlangen registry [3], calculated lifetime costs of a stroke are around € 43,000. Epidemiological studies also noted that - mainly due to German demography - the lifetime prevalence has risen significantly since 1998 [4].

Atrial fibrillation (AF) is the most common arrhythmia of clinical significance [5]. It is a supraventricular tachyarrhythmia with uncoordinated activity of the atria and frequencies between 350 to 600 bpm. Result is functional loss of activity of the atria with reduction of cardiac output [6]. AF is associated with increased morbidity, especially stroke and heart failure, and increased mortality [7,8,9,10] and constitutes a significant public health problem [11,12,13]. The prevalence of diagnosed AF is estimated 1% in Germany with increase in the old age (8% in population above 80 years) [14].

Mainly discovered is AF in patients who seek medical treatment due to related clinical symptoms (palpitations, shortness of breath, etc.) or in previously asymptomatic patients after they have suffered a stroke which was possibly caused by cerebral embolism [5]. Due to the relatively short observation periods, e.g. only around 60 s with a usual resting ECG, some screening studies provide low detection rates of previously undetected AF.

The Swedish “Strokestop” study [15] with 75-year-old subjects discovered a previously undetected AF in 3.0% of subjects using phased ECG recordings during a two-week measurement. The presence of atrial fibrillation was already known in 9.3% of the subjects. Various similar studies aimed at the identification of previously undetected AF and reported a ratio of unknown to known AF between 20 and 45% increasing with age [16, 17].

Analyses of long-term data released in the 1980s and 1990s showed a significantly increased likelihood of a stroke in patients with AF [8]. It was demonstrated that in patients with atrial fibrillation the probability of an ischemic stroke was increased 4- to 5-fold, but also AF is associated with higher mortality, and, if stroke occurs, AF patients suffer a significantly higher degree of disability, death and risk of a second stroke within 12 months compared to non-AF patients [18,19,20,21,22].

Anticoagulating agents to reduce the risk of stroke with AF have been in clinical use since the 1980s. Several studies found oral anticoagulation to reduce the risk of stroke by 65–80% in patients with AF [23, 24]. Guidelines therefore require mandatory prevention with anticoagulants in AF patients with additional risk factors [25]. Vitamin K antagonists and antiplatelet agents have been increasingly replaced by direct (or “non-vitamin K antagonist”) oral anticoagulants (NOAC) in the last 5 years. They show a slightly improved effectiveness and a significantly improved safety profile compared with vitamin K antagonists, particularly with regard to bleeding [26,27,28,29,30].

Thus, systematically undetected AF is a systematic risk for stroke for patients who could otherwise benefit from an anticoagulation therapy. Therefore, early detection and appropriate measurements reduce the number and burden of strokes.

“Preventicus Heartbeats” is a Class 2a medical app with the purpose to detect and record the presence or absence of AF episodes by means of regular short measurements on the participant’s mobile phone. The technology is based on recordings of photopethysmographic (PPG) signals which is widespreadly used for pulse detection. By simply putting a finger on the smartphone camera the pulse curve is recorded and automatically analysed. Pathological reports are reviewed by a telecare centre before indicating the result to the user. A training programme on how to perform measurements is integrated in the app as well as aids and feedback tools. Sensitivity and specifity of atrial fibrillation detection compared to the gold standard electrocardiogram were determined in prospective validation studies [31, 32]. Participants diagnosed with absolute arrhythmia during the “AF screening” will undergo a validation phase of up to 2 weeks. A continuously recording, telemetric chest ECG event recorder (“AF confirmation”) allows the final diagnosis and an appropriate treatment of AF according to the guidelines, by ruling out incorrect screening results or results that are not relevant for treatment, which may arise from short-term arrhythmia episodes during the mobile phone measurement.


To assess the cost-effectiveness, we employed a model to compare the use of the “Preventicus Heartbeats” screening with a scenario without screening. Financial effects of the German morbidity-oriented risk structure compensation scheme (RSC) were optionally included. The course of the health state of the screening cohort was modelled based on parameters from official statistics and publications about topics “stroke”, “atrial fibrillation and stroke” and “share of undetected atrial fibrillation”.

The model is firstly constructed as long-term health history of a screening cohort over several periods for the remaining lifetime of the single participants. A Markov model was implemented, calculating specific states at any given point in time corresponding to different degrees of health or illness, see Fig. 1.

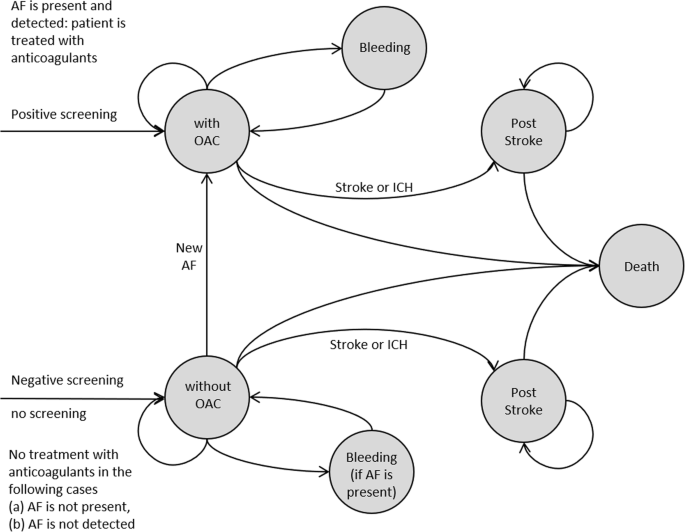

Fig. 1

Markov model structure

Depending on the events in a defined period (e.g. bleeding, stroke, death), the health state changes in the next period. This approach is a standard tool for the assessment of long-term cost-effectiveness (see [33], p. 295 et seq [34]).

Transition probabilities were defined for the transition between the health states, in which further information is included, depending on the previous health state. Age, gender, the presence of AF, treatment with oral anticoagulants and previous strokes or cerebral haemorrhages were incorporated.

In the scenario with screening, the presence or absence of AF and the quality of the screening (sensitivity and specificity of the procedure) influence the transition probabilities. In the scenario without screening, a distinction is made between presence or absence of AF. For each of the observed cases a sub-model with the different transition probabilities was constructed. The design of the model is a cohort model. The cohort is homogeneous in terms of starting age and gender.

Included are the costs of screening and the cost of anticoagulation among participants with newly detected AF and participants in whom AF was detected during the relevant time period without prior screening. During the further course of the model, the participants may suffer a stroke, cerebral haemorrhages or bleeding in other locations. The costs of these events are also included in the financial endpoint.

For additionally identified AF patients who are receiving anticoagulation treatment statutory sick funds are compensated according to the morbidity-oriented risk structure compensation scheme (RSC) if this is documented in two subsequent quarters. Similarly, strokes and cerebral haemorrhages also are compensated by RSC compensation if the patients are treated in hospital.

Base case analysis

Effectiveness of the screening is measured by the number of strokes prevented in participants with AF. For compatibility with the Scandinavian and Anglo-Saxon literature on the cost-effectiveness of screening measures, the effect of the screening measure is also calculated on the quality-adjusted life years (QALY) (for the QALY concept see [35]). Endpoints were calculated for a specified starting age and alternatively for men and women. The default starting age was set 75 years old in the base case, analogous to the Swedish model based on the “Strokestop” study [36]. The screening cohort in “Strokestop” was composed of insured persons (a) between the ages of 65 and 85 or (b) between the ages of 55 and 65, but who are at increased risk of AF or stroke due to underlying diseases such as high blood pressure or diabetes. The base case was calculated separately for men and women for all starting ages between 65 and 85. The events were weighted by age and gender with fictitious shares in a screening population, which included the demographic population shares. It was also assumed that the participation rate will increase up to the age of 75 and then fall (see Fig. 2). The events were weighted by age and gender with fictitious shares in a screening population, which included the demographic population shares. It was also assumed that the participation rate will increase up to the age of 75 and then fall.

Fig. 2

Simulated population by age and gender

In order to gain insights into the effects of the screening for an entire population, the Markov cohort model was run separately for 42 strata (men and women and all starting ages between 65 and 85 years). The strata results were then weighted by their proportions in the fictitious population.

Under the German provisions of special care (Art. 140a (2) SGB [German Social Act] V) the cost-effectiveness of any measure must be tested after 4 years.

Deterministic sensitivity analyses

The model parameters were subjected to a series of sensitivity analyses. Here, the base case model result (no deterioration of the result was shown when the RSC compensation payments were considered) proved to be robust against the changes in the parameters. Changes to the stroke rates and costs, the amounts of the RSC compensation payments, the starting age of the patients and the prevalence of undetected AF in the screening population had the strongest influence on the result of the model.

Sensitivity analyses are used to assess the dependency of the model results on certain assumptions and the stability of the model results. Nineteen model parameters were selected, which were expected to have a stronger impact on the model result, or which had no or only inaccurate prior information when selecting the parameters for the base case. Table 6 lists the parameters for the sensitivity analysis and the selected ranges of the parameters.

Probabilistic sensitivity analysis

While the deterministic sensitivity analysis only changes one parameter at a time and leaves the rest of the parameters unchanged, the probabilistic sensitivity analysis simultaneously changes a given set of parameters. For each of the varied parameters distribution assumptions are postulated, which either focus on the sampling error of the survey or represent further assumptions. For the analysis presented here, distribution assumptions were made for 32 parameters (see Appendix, Table 3). The distribution assumptions relate to transition probabilities, stroke costs and quality of life. This is based on the simplistic assumption of independent distributions of the parameters.

In the probabilistic sensitivity analysis, the decision problem is considered from a Bayesian point of view. The a priori distributions of the parameters are linked to the empirical distributions of the observed populations using a Monte Carlo simulation. The result is an approximate value for the a posteriori distribution of the expected values. What is presented is the result of 1000 random selections from the distributions of the 32 parameters considered to be random.

A detailed description of the model parameters used in the base case and the sensitivity analyses is given in the Appendix.


TreeAge Pro®, version 2019.2.1 was used to create and to calculate the model, including the probabilistic sensitivity analyses and the positioning of the observed alternatives about their incremental cost-effectiveness.


Base case

Timeframe: remaining lifetime

The cohort with offer to participate in “Preventicus Heartbeats” screening showed cost advantage for both men and women. The cost advantage initially increases with the starting age up to a maximum, 77 years for men and 80 years for women. A higher cost advantage is found for men, due to the higher prevalence and incidence of stroke (see Fig. 3).

Fig. 3

Cost delta screening vs. no screening, timeframe: remaining lifetime

Including the compensation by the risk structure compensation scheme (RSC), the entire cohort outlined in Fig. 2 results in a cost advantage of €109.96 per included insured person for the “Preventicus Heartbeats” screening. This effect is approx. €35 higher in men (with €128.80) than in women (€94.43).

QALY delta

For all subgroups observed, there is a slight increase in quality-adjusted life years. The QALY effect is correlated to starting age: men: 65 years old: + 0.008 QALY, 75 years old: + 0.018 QALY, 85 years old: + 0.021 QALY. In average the screening cohort gains + 0.015 QALYs over remaining lifetime.

Strokes prevented

The AF screening prevents 54 cases of stroke in a screening population of 10,000 participants, men: 61; women: 48. Initial and subsequent events were included in the calculation. At a starting age of 75 (based on 10,000 participants) 60 (men: 67, women: 55) strokes were prevented.

Timeframe: four-year period

Across the screening cohort outlined in Fig. 2, there is a cost advantage of €23.59 in favour of the “Preventicus Heartbeats” screening, including the compensation by the risk structure compensation scheme (RSC). This effect is approx. €23 higher in men (with €36.13) than in women (€13.25).

Participants with a relatively low starting age (men: up to 69 years old, women: up to 73 years old) do not achieve a cost advantage (see Fig. 4).

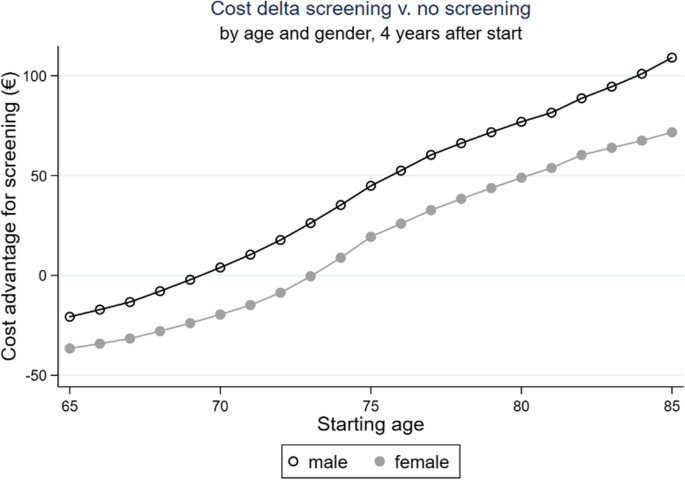

Fig. 4

Cost delta screening vs. no screening, timeframe: 4 years after screening

QALY delta

Over the next 4 years after the start of the project, quality-adjusted life years increased by 0.002 QALY.

Strokes prevented

Based on the first 4 years after the screening, AF screening prevents on average 24 cases of stroke in a screening population of 10,000 participants (men: 30; women: 20). Initial and subsequent events were included in the calculation. In the shorter timeframe, at a starting age of 75 years old (based on 10,000 participants), 27 (men: 32, women: 23) strokes were prevented.

Deterministic sensitivity analyses

Timeframe remaining lifetime: A deterministic sensitivity analysis for all selected parameters is performed in a tornado chart. The parameters are then sorted according to the fluctuation range of the endpoint (here: cost impact of the screening taking into account the effects of RSA) and presented as a deviation from a reference line (here: “EV” = “expected value”, corresponds to the base case result). In TreeAge Pro® the effects of decreased parameter values are shown in light shading and the effects of increased parameter values are shown in dark shading. Figure 5 shows the tornado chart for the timeframe “remaining lifetime” and for men with a starting age of 75. The result for women only differs slightly (Table 1).

Fig. 5

Tornado chart: effect of the isolated parameter changes of 19 model parameters on the model result (each ceteris paribus), timeframe remaining lifetime, men; base case: starting age 75 years old

Table 1 Results of the sensitivity analysis for 9 parameters with a high degree of fluctuation and the discount factor, timeframe remaining lifetime, starting age 75 years old

The model endpoint “Delta costs incl. RSA effect” is negative for all observed variants. Considering the effect of the RSA, it can be assumed that the screening has a positive earnings effect. The parameter “undetected AF in % of detected AF”, for which a relatively wide parameter range of 10% to 70% is assumed, has the strongest impact on the change in costs (in 75-year-old men: -€9 with a share of 10% up to -€366 with a share of 70% undetected AF).

The variation of influential factors linked to the frequency and costs of strokes also has a strong impact on the model result as well as the amount of the compensation payments from the RSA. In case of a complete cessation of the RSA, the model endpoint in the base case decreases from €148 to €8 for men and from €114 to €2 for women. Table 1 lists the results for 9 parameters with high fluctuation ranges.

Timeframe four years

Figure 6 shows the tornado chart for the timeframe 4 years for men with a starting age of 75. Compared to the timeframe remaining lifetime, the starting age and the scaling factor RSA gain in importance. The complete cessation of the RSA would result in a negative cost delta of €49 for men and €51 for women. Negative earnings effects also arise if extreme changes occur in other parameters. One example is a strong reduction of the “prevalence parameter” (undetected AF in % of detected AF) from 33 to 10% (see Table 2). As a result of the shorter timeframe, the effect of the discount factor is reduced. The parameter “undetected AF in % of detected AF” and the parameters linked to the frequency and the costs of a stroke, have a strong impact on the model result, even in the shorter timeframe.

Fig. 6

Tornado chart: effect of the isolated parameter changes of 19 model parameters on the model result (each ceteris paribus), timeframe: 4 years, men; base case: starting age 75 years old

Table 2 Results of the sensitivity analysis for 9 parameters with a high degree of fluctuation and the discount factor, timeframe four years, starting age 75 years old

Table 2 lists the results for nine parameters with a high degree of variation that appear in the shorter timeframe.

Probabilistic sensitivity analysis (PSA)

Cost delta

The distribution of expected cost changes (including the RSA effect) is shown in Fig. 7 (a). The simulation shows the distribution for men, a timeframe lifetime and a starting age of 75. The values are scattered around an average value of -€109 (Base Case: -€147.67) with a standard deviation of €41. No cost increases were observed in any of the 1000 simulations. The values are scattered between -€258 (best value) and -€6 (worst value). With a 95% probability, the endpoint is situated between -€189 and -€29.

Fig. 7

Result of the probabilistic sensitivity analysis: expected change in the result (Delta costs including RSA effect), timeframe lifetime (a), 4 years (b), men, base case: starting age 75 years old

For a timeframe of 4 years, the distribution moves to the right. The distribution of the endpoint “Expected cost change” (including the RSA effect) is shown in Fig. 7 (b). The values are scattered around an average value of -€45 (base case: -€44.85) with a standard deviation of €21.7. The values are scattered between -€132 (best value) and + €24.5 (worst value). With a 95% probability, the endpoint is situated between -€91 and -€6.

Incremental cost-effectiveness analysis (ICER)

The result of the screening shows a slight increase of the quality-adjusted life years from 7.907 to 7.923 years (standard deviation 0.08 QALY) for men with a starting age of 75 and the timeframe remaining lifetime, whereby the costs have also decreased (taking into account the RSA effect). This means that, when it comes to choosing between the alternatives “Preventicus Heartbeats screening” and “no screening”, the alternative “Preventicus Heartbeats screening” is dominant (i.e. has a higher effectiveness with less costs). The result of the Incremental Cost-Effectiveness Analysis for men, starting age of 75, is shown as a two-dimensional ICER graph in Fig. 8.

Fig. 8

Result of the probabilistic sensitivity analysis: incremental cost-effectiveness and 95% confidence ellipse, timeframe lifetime, men; base case: starting age 75 years old

The result for women, starting age 75 years old, corresponds to the result for men. The costs have decreased, and the number of quality-adjusted life years rises from 9.258 to 9.273 years (standard deviation 0.07 QALY).


The present model shows the cost-effectiveness of a systematic screening procedure for a population compared to the alternative (no screening). Although the screening goes hand in hand with higher costs for stroke prevention, the costs are already offset in the short term by the lower costs for acute treatment and follow-up treatment, which result from the lower number of strokes. Added to this are compensation amounts from the morbidity-oriented risk structure compensation scheme, which lead to a positive change to the results because of the screening.

Central cost data, such as the treatment costs for a stroke, were compiled from German sources. This is also the case for the incidence and prevalence data used and the restrictions for the mortality rates.

The literature lists a series of other cost-effectiveness models to assess procedures to detect previously undetected atrial fibrillation using a screening procedure. A systematic literature review and a model on the topic from a health economics point of view were carried out by [37] as part of a Health Technology Assessment for the NICE Institute. Another model of note is a cost-effectiveness model by the HIQA Institute in Ireland [38] as part of an HTA, which was also based on Irish healthcare information. The comprehensive model as part of the NICE-HTA showed an average approval rate (“uptake ratio”) of 64%. The average proportion of previously undiagnosed AF among the screening participants was 35%. Overall, systematic opportunistic strategies performed better than the systematic screening of entire populations and the cost-effectiveness increases with an increasing starting age ([37], Table 47).

With regard to the implementation of the screening, the Swedish “Strokestop” study [15] was found to be very similar to the “Preventicus Heartbeats” screening [36]. carried out a cost-effectiveness analysis based on the results and methods of the “Strokestop” study. At an increased cost of €50 per participant, the study showed an increase of the quality-adjusted life years from 6.646 to 6.657 QALY and an ICER ratio of €4313 per additional QALY. Compared to the reference scenario (Standard Care), eight cases of stroke were prevented among 1000 screening participants during the remaining lifetime of the simulated subjects.

For Switzerland, the cost effectiveness for the use of anticoagulant therapy was estimated between CHF 9702 and CHF 25,108 for the gain of a QALY [39].

The result of the studies mentioned is a cost increase due to the screening measures, which is accompanied, however, by an increase in effectiveness.

The presented cost-effectiveness model, on the other hand, showed a decrease in costs for almost all observed scenarios, accompanied by an increase in effectiveness. This effect is even greater because of the RSC compensation payments, which are not included in foreign studies, but which fully impact the results and premiums for statutory healthcare insurers in Germany.

A major difference compared to the “Strokestop” model [37] is the low screening costs (for the “Preventicus Heartbeats” scenario €47.54 for the app incl. Quality assurance and the examination of obvious defects in case of conspicuous results and €297.50 for the validation by means of a 14-day ECG), which only apply in case of positive and quality-tested app results [36]. lists costs of €108 for registration and ECG measurement in the 1st phase. In the second phase, the costs are €266 for a 24-h ECG.

The increased stroke rate in the presence of AF without prevention is three times the rate of that with prevention, according to [36], whereas it is four times the rate in this model and in the Framingham study [38, 40]. shows an age-dependency of the relative risk of stroke associated with AF in the Framingham data (Fig. 5.8). A scenario with threefold increased stroke risk was tested in our sensitivity analyses, without changing the basic statement of the present model.

As is the case in other studies (such as the Irish HTA by [36, 38] assume lower stroke costs. Aronsson [36] cite a Swedish study on stroke costs, which yielded €18,175 for the first year after the acute event and €4336 as costs for subsequent years. The 50% reduction in the costs of a stroke shown by this model (€21,060 in the first year and €6231 in subsequent years) were also tested in a sensitivity analysis (see Tables 1 and 2).

The differences between the design of the model used in this study and other cost-effectiveness models offer starting points for optional further development. The presented model regards age and gender as significant influential factors for the incidence rates [36], for example, use the CHA2DS2VASC score of the 1000 simulated participants of the Strokestop study. The Markov model in the NICE-HTA [37] includes health states which summarise different previous events (e.g. bleedings and strokes). This model only assigns the simulated subjects one health state each at any given point in time. Also different from other studies is the number of simulated phases per year in the remaining lifetime. The length of the phases in this study is 1 year, whereas other studies include several multi-year phases.

A starting age of under 65 years is not included in the model. If the participant cohort is limited to individuals with an increased CHA2DS2VASC score, an improved model result can also be expected for younger participants. To quantify this effect, this model approach should be expanded by including the CHA2DS2VASC score, which can be based on study results for younger arrhythmia patients and their risk factors, insofar as these are available. From the viewpoint from comparing the reliability to the simulation results, the future study had better take a heterogeneous population like Herman et al. [41] into account.


The present study shows the positive effect on the results and premiums of a systematic screening by means of the Preventicus screening procedure using population and cost information which is relevant for the implementation of the screening procedure in Germany.

Availability of data and materials

All data generated or analyzed for the economic model are included in this published article.



Atrial Fibrillation


Anti-thrombotic treatment resp. No anti-thrombotic treatment


Confidence interval


Diagnosis related groups


Unified standard of evaluation, German reimbursement catalogue, (German: Einheitlicher Bewertungsmaßstab)




Expected value


Health Information and quality authority (Ireland)


Homogeneous morbidity groups


Health technology assessment


International classification of diseases


Incremental cost-effectiveness ratio


Intracerebral hemorrhage


National institute for health and care excellence (England)


Novel (direct) oral anticoagulants


Oral anticoagulants


Quality adjusted life years


Risk structure compensation scheme /(German: Risikostrukturausgleich)

SD, Std. Dev.:

Standard deviation


German social act (German: Sozialgesetzbuch)


Value added tax


Vitamin K antagonists
